SGE provides sales and service support for CTMI (Chola Turbo Machinery International) turbine solutions, helping industrial customers access turbine products and technical support.
1.0 The Relationship
SGE is the local engineering & service partner. CTMI is the turbine technology partner.
PT. Sukses Gemilang Engineering has developed into a company that provides services and sales for CTMI (Chola Turbo Machinery International) turbines, made in India. SGE's sales and service division supports customers directly, with CTMI as the turbine manufacturer behind the products.
NG Industrial Sdn Bhd, based in Petaling Jaya, Selangor, Malaysia, is listed as an agent for CTMI Turbine — part of the wider network of sales and service support behind the products SGE supports locally.
SGE — Sales & Service Division
Jl. Taduan No. 11 B, Medan, Indonesia
CTMI Product Range
5 kW to 30,000 kW, across a wide range of applications

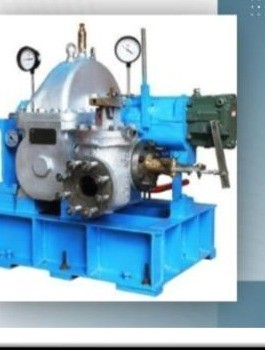

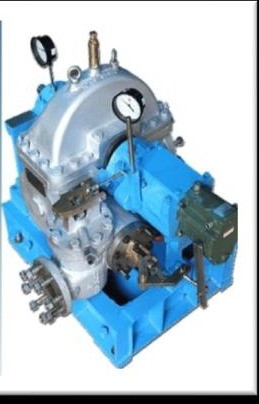

A Single Stage Steam Turbines
5 kW – 3,000 kW
| Range | 5 kW – 3,000 kW |
| Speed | Up to 6,000 RPM |
| Pressure | Up to 66 bar / 960 PSI |
| Temperature | Up to 480°C / 896°F |
| Variants | Back Pressure Turbines, Condensing Turbines |
Design Variants
- API 611 & 612 compliant pump drives
- Horizontal (axial & radial split)
- "Between the bearings" wheel designs
Salient Features
- Direct drive or integral gear box with lubrication system
- Highly efficient & compact designs
- Efficient nozzles & blades
- Woodward governor, oil relay (TG series)
- Optional exhaust location
B Multistage Steam Turbines
250 kW – 30,000 kW
| Range | 250 kW – 30,000 kW |
| Speed | 3,000 – 9,000 RPM |
| Inlet Pressure | Up to 105 bar |
| Inlet Temperature | Up to 510°C / 950°F |
| Exhaust Pressure | Vacuum to 30 bar |
Variants
Back Pressure · Condensing · Extraction Back Pressure · Extraction Condensing · Bleed cum Back Pressure/Condensing
Design Variants
- API 611 & 612 compliant
- Horizontal split
- Single and multi valve inlet
- Controlled extraction, uncontrolled bleeds
- Mixed pressure induction
Salient Features
- Slow speed, robust designs
- Woodward-make hydraulic, mechanical and electronic governors
- Heavier than contemporary turbines on the market, due to larger size, additional safety margins, low speed, and more stages
- Long tapered and twisted blades at the end stages for optimum efficiency
2.0 CTMI Achievements
Track record behind the products SGE supports
01
Only private steam turbine manufacturer to supply a turbine to a nuclear power plant.
02
Only Indian steam turbine manufacturer to have supplied steam turbine components to the USA.
03
Only Indian steam turbine manufacturer to supply ORC turbines.
04
Only Indian steam turbine manufacturer to have supplied a single stage condensing turbine.
05
Leading business houses whose patronage comes in the form of repeat orders.
06
Product designs, quality systems and manufacturing processes have been audited and approved by companies including GE, Siemens, Toshiba, Mitsubishi, Kawasaki Heavy Industries Corp, and Honeywell.
3.0 Certifications
Quality & compliance
Environmental Management
Quality Management
Health & Safety Management
Certificate of Compliance
4.0 State of Art Infrastructure
Manufacturing behind the products
- State-of-the-art manufacturing facilities, spread across 12 acres of land.

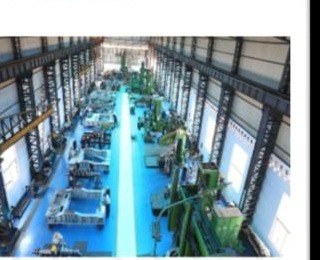

- An assembly bay of 19,000+ sq ft, where multiple machines are assembled simultaneously.
- A separate quality control setup.
- An in-house steam turbine test rig.
5.0 Installations
Operating across industries
CTMI turbines operate across sectors including nuclear, steel, pulp & paper, cement, metal, universities, chemical, sugar, fertilizers, distilleries, geothermal, and refineries.
Manufactured in India and exported to markets worldwide, including Argentina, Bangladesh, Belarus, Canada, Egypt, Fiji, Iceland, Iran, Iraq, Italy, Jamaica, Kenya, Mauritius, Mexico, Myanmar, Nepal, Oman, Pakistan, Peru, the Philippines, Russia, Saudi Arabia, Senegal, South Korea, Spain, Taiwan, Thailand, Turkey, Uganda, Ukraine, the UAE, the UK, the USA, Vietnam, Czechia, and Poland.
6.0 Technical Resources
Sample Technical Datasheet
The table below reproduces a sample CTMI multistage turbine datasheet, illustrating the technical documentation format provided with a turbine order. Values shown are project-specific to this sample and are for illustration only — every SGE / CTMI proposal is engineered and documented against the customer's actual requirement.
| Parameter | Unit | Data |
|---|---|---|
| Turbine Model | — | MS 42 |
| Turbine Type | — | Multistage, impulse, throttle governed, back pressure steam turbine |
| Drive Type | — | Gearbox driven |
| Turbine Speed | rpm | 7,500 |
| Turbine Quantity | nos. | 1 |
| Inlet Steam Pressure | bara | 20.00 |
| Inlet Steam Temperature | °C | 320.00 |
| Inlet Steam Enthalpy | kcal/kg | 733.00 |
| Inlet Steam Flow | tph | 13.00 |
| Exhaust Steam Pressure | bara | 3.20 |
| Exhaust Steam Temperature | °C | 152.00 |
| Exhaust Steam Enthalpy | kcal/kg | 661.50 |
| Power at Generator Terminals | kW | 960 ± 3% |
Note: turbine speed to be confirmed during the post-order detailed engineering stage.
